PUMP GROUP
| PUMP GROUP |
BST 68.16 6RZ
|
BST 68.20 6RZ
|
| |
Standard
|
Optional
|
|
Theo. Conc. Output (max)
(Piston Side)
|
160 m³/ h
|
200 m³/ h
|
|
Theo. Conc. Pressure (max)
(Piston Side)
|
81 bar
|
81 bar
|
|
Stroke
|
26 Stroke / min
|
27 Stroke / min
|
|
Concrete Cylinder
Dimensions
|
250 mm x 2100 mm
|
250 mm x 2500 mm
|
STANDARD EQUIPMENT
Hopper Capacity : 650 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Pump : 67 lpm
Water Tank Capacity : 1000 l and Hose 15 m
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box

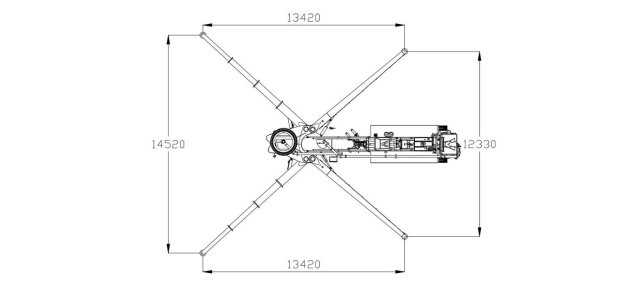

SUPPORT LEGS SYSTEM
Front Legs : Side Hydraulic Swing
Rear Legs : Side Hydraulic Swing
CONTROL SYSTEM
Smartstar Control
Color LCD
Rear Keyboard
Diagnostic
Fuel Saving Mode
OPTIONS
- Hopper Vibrator
- Hydraulic Driven Fan
- Stability Control
- Air Compressor
- End Hose Squeeze Valve
- High Pressure Cleaning Kit (160 bar)
- Betonstar IoT System
- Remote Control (HBC)
- Water and Oil Tank Heater
