Hopper Capacity : 450 l
Switching System : Elect. Magn. Sensor
Concrete Valve : S Valve System
Electric Box : Waterproof and PLC Controlled
Remote Control : Included (HETRONIC)
End Hose : 3 m
Water Tank Capacity : 500 l and Hose 15 m (Pressure Tank)
Lubrication System : Hydraulic (LINCOLN)
Driven by : PTO or Gear Box

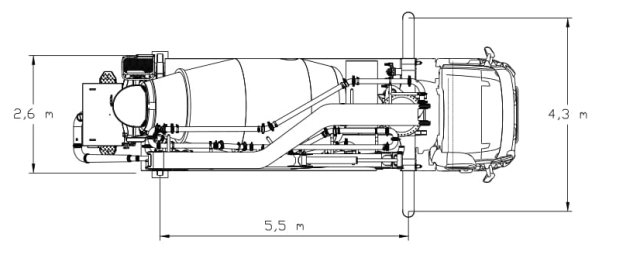

SUPPORT LEGS SYSTEM
Front Legs : Sliding Support
Rear Legs : Fixed
MIXER SYSTEM
Nominal Capacity : 7 m³
Drum Speed : 1-14 rpm
Filling Ratio : 60 %

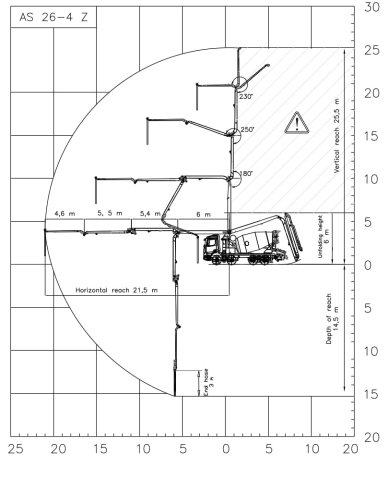

BOOM SYSTEM
Boom Type : 4Z
Sections : 4
Boom Swing Time : 104 sec
Boom Swinging Angle : 365°
Concrete Pipe Diameter : 100 mm
